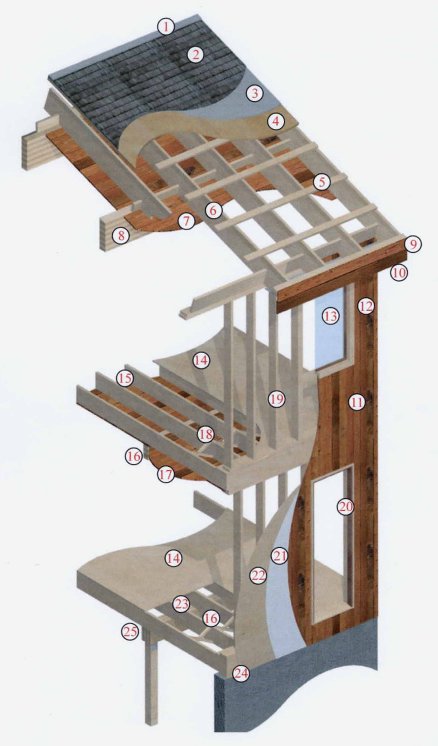

SPECIFICATIONS
| # |
ADVANTAGE |
DELUXE |
ULTRA |
| 1 |
CONTINUOUS ROOF VENTING AT RIDGE |
| 2 |
30 YEARS FIBERGLASS SHINGLES |
50 YEARS FIBERGLASS SHINGLES |
| 3 |
#15 AND #30 ROOFING FELT, 1 ROW ICE AND WATER SHIELD FOR EAVES AND VALLEYS |
| 4 |
1/2" PLYWOOD SHEATHING WITH "H" CLIPS, METAL VALLEY AND ROOF FLASHING |
| 5 |
2 X 4 SPF ROOFING STRAPPING @ 24" O/C, BLOCKING AND INSULATION STOPS |
| 6 |
2 X 15 SPF RAFTERS @ 24" O/C |
| 7 |
|
1" K.D. CEDAR LINER WHERE INDICATED |
| 8 |
D. FIR GLU-LAM RIDGE BEAM |
D. FIR GLU-LAM RIDGE BEAM ON 4' - 6' CENTERS WHERE INDICATED |
| 9 |
1 X 8 CEDAR FASCIA BOARDS |
2 - 1 X 8 CEDAR FASCIA BOARDS |
| 10 |
1 X 6 KILN DRIED CEDAR SOFFIT WITH VENT STRIP |
| 11 |
1 X 6 KILN DRIED CEDAR CHANNEL SIDING |
1-1/4" KILN DRIED T&G CEDAR SIDING |
| 12 |
|
1 x 4 CEDAR WINDOW, DOOR AND CORNER TRIM |
| 13 |
VINYL, LOW-E, SLIDER WINDOWS |
VINYL, LOW-E, SLIDER WINDOWS
WITH CLEAR HEMLOCK JAMB LINER |
METAL CLAD WOOD LOW-E WINDOWS
WITH CLEAR HEMLOCK JAMB |
| 14 |
3/4" T & G PLYWOOD SUBFLOOR |
| 15 |
2 X 10 SPF UPPER FLOOR JOISTS |
2 X 8 SPF UPPER FLOOR JOISTS |
| 16 |
4 - 2 X 10 SPF NAIL-LAM BEAM |
D. FIR GLU-LAM BEAMS ON 4' - 6' CENTERS WHERE INDICATED |
| 17 |
|
1" K.D. CEDAR LINER WHERE INDICATED |
| 18 |
2 X 2 CROSSING BRIDGE |
| 19 |
2 X 6 SPF STUD @ 16" O/C |
| 20 |
PANELLED EXTERIOR STEEL INSULATED DOOR WITH ALUMINIUM CLAD FRAME |
| 21 |
BUILDING WRAP |
| 22 |
1/2" PLYWOOD SHEETING |
| 23 |
2 X 10 SPF FLOOR JOIST WITH SUBFLOOR ADHESIVE |
| 24 |
2 X 6 PRESSURE TREATED SILL PLATE WITH SILL GASKET |
| 25 |
4 - 2 X 10 SPF NAIL-LAM BEAM ON 6 X 6 POSTS AND/OR BEARING BASEMENT WALLS |
| |
STAIR MATERIALS INCLUDE 2 X 12 KILN DRIED STRINGERS AND TREADS WITH 1/2" PLYWOOD RISERS |
| |
ALL NAILS AND FASTENERS REQUIRED TO CONSTRUCT THE HOME PACKAGE |
| |
PRIME FRAME TEXTURED COLONIST
INTERIOR DOORS |
CLEAR HEMLOCK FRAME
RED OAK VENEER INTERIOR DOOR |
CLEAR HEMLOCK FRAME, CLEAR
PINE STILE & RAIL INTERIOR DOOR |
U.S. Price List January 15, 2006
Prices in U.S. Dollars Excluding Taxes - FOB Factory, Delta, B.C., Canada
|
At Linwood Homes our focus is on creating a home package developed spcifically to meet your individual needs.
There is no additional design cost for customising one of our designs or creating your own unique home design.
To further enhance your creative potential, we offer a wide range of finishing options and can even create custom siding profiles.
Each home package is indicidually priced based on your particular specifications. The following price list has been developed to provide you with prices based on floor plans featured in the Linwood Home Plan Book.
As industry leaders, we offer a high quality materal package with three different structural and finishing specifications. Our Advantage, Deluxe and Ultra packages all include the following:
STRUCTURAL AND FINISHING HIGHLIGHTS OF THE THREE SPECIFICATIONS INCLUDE:
|
| |
| Western Red Cedar Siding |
1" x 6" channel siding from tight knot cedar. |
1" x 6" channel siding with 1" x 4" window, door and corner trim from tight knot cedar. |
1.5" x 6" tongue and groove siding with 1" x 4" window, door and corner trim from tight knot cedar. |
| Roof System |
Featuring solid 2" x 15" kiln-dried SPF rafters with 2"x4" strapping on 24" centers, sheathed with 1/2" plywood to provide up to R40 insulation capability. Velux skylights where indicated. |
Featuring solid 2" x 15" kiln-dried SPF rafters with 2"x4" strapping on 24" centers, sheathed with 1/2" plywood to provide up to R40 insulation capability. Velux skylights where indicated. |
Featuring solid 2" x 15" kiln-dried SPF rafters with 2"x4" strapping on 24" centers, sheathed with 1/2" plywood to provide up to R40 insulation capability. Velux skylights where indicated. |
| Roof Finish |
30 year Fiberglass shingles. |
30 year Fiberglass shingles. |
30 year Fiberglass shingles. |
| Structure Under Upper Floor |
2x10 floor joist system on 16"OC. |
2x8 floor joists on 16"OC supported by glu-lam beams on 4' to 6' centers where beam lines shown on plan. |
2x8 floor joists on 16"OC supported by glu-lam beams on 4' to 6' centers with, 1" cedar liner, where beam lines shown on plans. |
| Exterior Walls |
2" x 6" kiln-dried studs on 16" OC sheathed with 1/2" plywood. |
2" x 6" kiln-dried studs on 16" OC sheathed with 1/2" plywood. |
2" x 6" kiln-dried studs on 16" OC sheathed with 1/2" plywood. |
| Exterior Doors |
Steel insulted door with aluminum clad frame and brilliance dead bolt & passage set. |
Steel insulted door with aluminum clad frame and brilliance dead bolt & passage set. |
Steel insulted door with aluminum clad frame and brilliance dead bolt & passage set. |
| Floors |
2" x 10" kiln-dried SPF floor joists 16" OC with 3/4" select grade T&G plywood flooring. |
2" x 10" kiln-dried SPF floor joists 16" OC with 3/4" select grade T&G plywood flooring. |
2" x 10" kiln-dried SPF floor joists 16" OC with 3/4" select grade T&G plywood flooring. |
| Windows with Low-e Argon Gas and Screens |
Low maintenace vinyl picture and horizontal slider windows. |
Low maintenace vinyl picture and horizontal slider windows with interior clear hemlock wood jamb liner. |
A choice of 8 colors of metal clad wood fixed and casement windows with clear hemlock jamb liner. |
